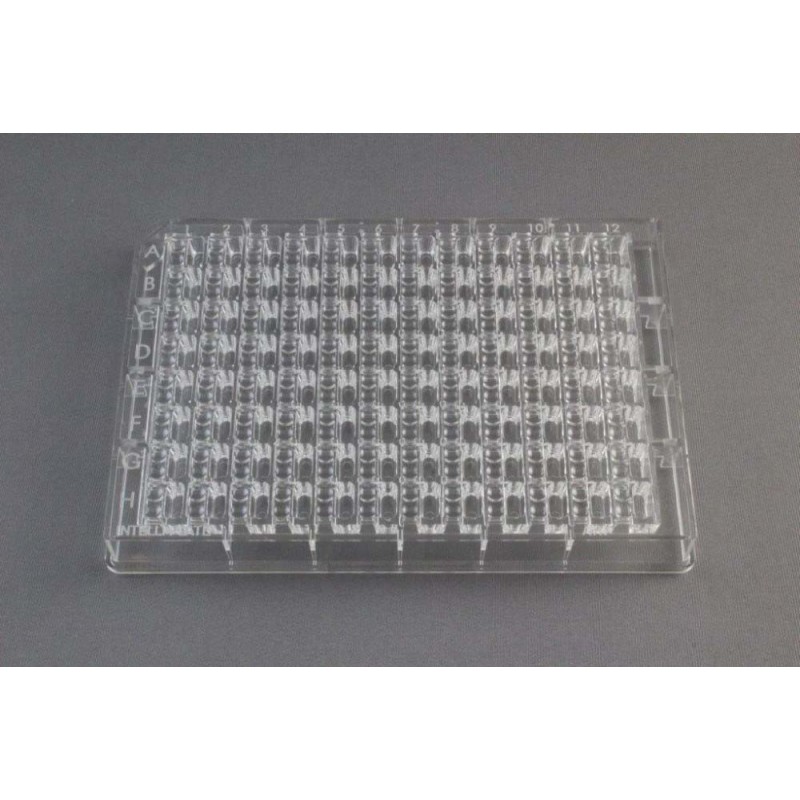

Intelli-Plate 96-2 Shallow Well - 10/cs

- SBS microplate footprint & standard well spacing
- Optically clear wells provide for superior crystal imaging
- Well layout makes crystal harvesting easier
- 2 identical shallow drop wells
- Rounded reservoir corners to prevent reservoir (MPD) creep
- Plate Material: Cyclic Olefin
- UV transmissible and low birefringence

Art Robbins Instruments has developed the ideal family of plates for crystallography applications: the Intelli-Plate. All versions of the Intelli-Plate have the SBS microplate footprint and standard well spacing and are ideal for manual or automated processing.

The Intelli-Plate 96-2 Shallow Well (Art Robbins 102-0001-20 Hampton Research HR3-163 and HR3-164) has two identically sized 2 µL reaction wells and a 140 µL screen reservoir. Each of the two identical well features a round bottom shallow well design for easy crystal harvesting and is arranged in an 8 x 12 array. Plates are made of cyclic olefin. UV transmissible and low birefringence. This plate is also available in a low profile height (Art Robbins 102-0001-21 Hampton Research HR3-181 and HR3-182).

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film (HR4-521).
