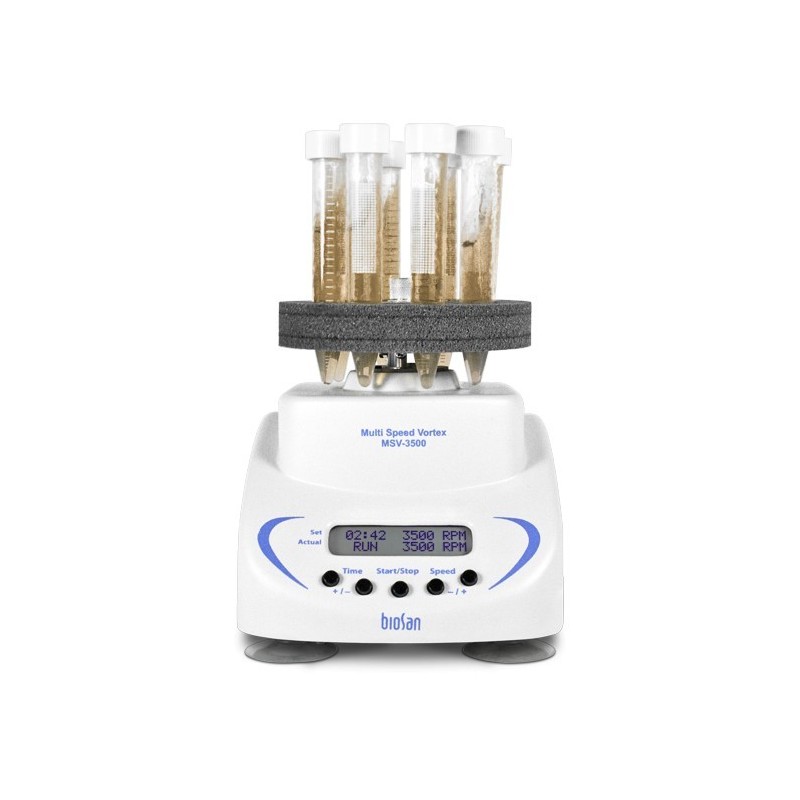

Multi Speed Vortex MSV-3500 is designed for soft or intensive mixing of reagents in different size and type plastic tubes (0.2 to 50 ml).
Multi Speed Vortex MSV-3500 is designed for soft or intensive mixing of reagents in different size and type plastic tubes (0.2 to 50 ml).
It is designed for operation in life science laboratories working in the fields of biochemistry, cell and molecular biology.
Unit has four types of interchangeable platforms: for Eppendorf type microtest tubes, 10/15/50 ml tubes (diameter 12/16/30 mm). Platforms can be ordered separately or as one set with MSV-3500.
Speed and time are under microprocessor control. LCD display indicates two lines of values: the set and actual values of speed and time.
Unit provides high maximum speed of platform rotation efficiently mixing microvolumes (less than 5 μl) of samples.
| Speed control range | 300–3,500* rpm * Maximum speed depends on load |
| Digital time setting | 0–60 min / non-stop |
| Display | LCD, 2 x 16 signs |
| Orbit | 4 mm |
| Maximum load | 0.2 kg |
| Maximum continuous operation time | 8 hrs |
| Dimensions | 180x170x145 mm |
| Weight | 2.6 kg |
| Input current/power consumption | 12 V, 1 A / 12 W |
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
|
|
|
|
|
|
